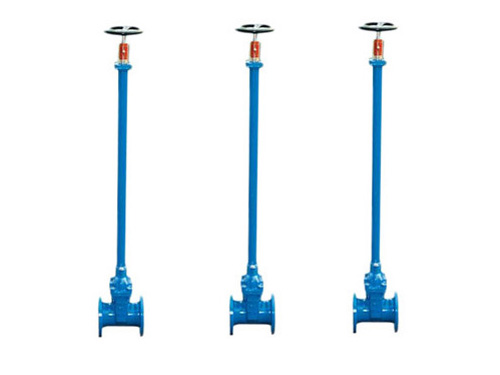

Buried (extended rod) elastic seat sealing gate valve

The buried (extended rod) elastic seat sealing gate valve adopts a design scheme that can be maintenance free and extend the valve stem. It is buried in one go, avoiding the expensive cost of the valve well and the huge investment caused by multiple road renovations and valve replacements. It beautifies the road environment, is resistant to rolling, and avoids accidents caused by the loss of the well cover

The valve stem of the buried (extended rod) elastic seat sealed gate valve can be flexibly customized according to the depth of the valve well. The top of the valve stem is equipped with a valve switch display, and a signal remote transmission device and a valve misoperation locking device can be installed

The buried (extended rod) elastic seat sealing gate valve has the following advantages:

1、 The fluid resistance is low, and the sealing surface is less susceptible to the friction and erosion of the medium

2、 Opening and closing is more effortless

3、 The flow direction of the medium is unrestricted, without disturbance or pressure reduction

4、 Simple form, short structural length, good manufacturing processability, and wide applicability

Advantages of buried (extended rod) elastic seat sealing gate valve:

1、 The fluid resistance is low, and the sealing surface is less susceptible to the friction and erosion of the medium

2、 Opening and closing is more effortless

3、 The flow direction of the medium is unrestricted, without disturbance or pressure reduction

4、 Simple form, short structural length, good manufacturing processability, and wide applicability

Installation precautions for buried (extended rod) elastic seat sealing gate valve:

The connection between the buried (extended rod) elastic seat sealing gate valve and the pipe should be kept natural and smooth, avoiding bending force. The expandable pipe should correspond to the space, and the buried (extended rod) elastic seat sealing gate valve should be installed at the same horizontal ground level. In order to facilitate future operations, the distance from the top of the expansion rod to the top of the well should be 5-10 centimeters
